ALARM SYSTEMS

IDS X64 Alarm System

HYYP Home App

IDS Xwave 1

IDS Xwave 2

OPTEX Xwave BX80 Wireless Detectors (862-01-BX-80)

OPTEX VXI Wired Detectors (862-01-VXI)

OPTEX Xwave2 Bi-directional HX40 Wireless Detectors (862-22-HX-40RAMC)

OPTEX FTN Wired Detectors (862-01-FTN)

IDS Dual Active Infra-Red Outdoor Beam (862-06-IDS30)

OPTEX RX Wired Compact Indoor Detectors (862-01-RXC)

OPTEX Indoor 360° Detector (862-01-FX)

OPTEX Xwave2 Bi-directional WNX Wireless PIR (862-22-WNX-40PI-T)

OPTEX Xwave2 Bi-directional CX Wireless Long Range PIR (862-22-CX-702RSC)

OPTEX VXI CMOD Camera module and VX Infinity sensor (862-01-VXI-CMOD)

OPTEX WXI-AM Wired Detector with Anti-Masking (862-01-WXI-AM)

OPTEX VXS Wired Detector (862-01-VXS)

Optex Shield BXS wired outdoor dual long range PIR (862-01-BXS-ST)

Strip Beams

IDS XSms Module

IDS 12V 8AH Battery

ZGS Security Services is operating essential sevices during the South African lock-down period. For more information and a daily update on the COVID-19 pandemic in South Africa click button:

COVID-19 South Africa
Graphic and Website Design Pretoria South Africa
Copyright © 2020 ZGS Security Services PTY LTD
CLOSE

IDS X64, 8 Zone Expandable to 64 Zones Control Panel incl transformer – exports (860-AF1-X64MT)

Description

  • 8 Zones expandable to 64 zones
  • 8 partitions
  • Supports up to 8 keypads
  • 5 fully programmable outputs expandable up to 25 outputs
    Hybrid, zone expanders available for both wired & wireless devices
  • 8 Zone plug in expander module, zones 9 to 16 (code 860-06-X-08PI)
  • 8 Bus expander modules, max 6 per system (code 860-06-X-08S)
  • 16 detector wireless receiver, max 4 per system (code 860-07-X64-0462)
  • 128 user codes
  • 1000 event log
  • Multi format digital communicator
  • Dedicated panic zone
  • Dedicated tamper zone
  • Dual Power Supply: 750mA auxiliary power
  • 2 Year warranty
CLOSE

HYYP Home App Demo Video:

CLOSE

Xwave Wireless 16 Zone Expander (860-07-563)

Description

Developed by IDS

The Xwave Wireless Zone Expander makes the X-Series control panels incredibly versatile, providing all the benefits of a fully supervised solution. Xwave transmitters are factory fitted into the complete range of Optex detectors. With its simple 4-wire bus connection, the receiver can be installed anywhere on the key bus to maximize range. Any combination of wired or wireless zones can be used making the X-Series control panels a true hybrid solution.

FEATURES

  • All wireless detectors are fully supervised
  • RF Jamming supervision
  • Detector signal strength testing
  • Approximate range of 100m line of sight between detectors and receiver
  • Receivers can be installed anywhere on the bus to optimise installation effectiveness
  • All programming done from the X-Series keypad or IDSwift2
  • Auto code learn
  • 2 Onboard outputs
  • Xwave transmitters are factory fitted into the complete range of OPTEX detectors
CLOSE

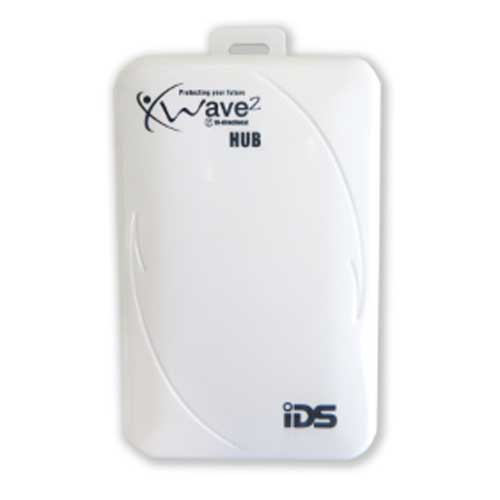

Xwave2 Bi-directional Wireless HUB (860-22-HUB)

Description

Developed by IDS

Xwave2, in partnership with OPTEX, now offers the latest in bi-directional wireless technology. Operating in the less congested 869Mhz band, it ensures signal acknowledgment to confirm message delivery, by utilizing clear channel assessment, and encryption to avoid message tampering. Due to ultra-short transmission times, and marshaling of status responses by the HUB, 64 wireless zones can be hosted in close confines. Lost or tampered detectors are picked up in minutes due to superior supervision.

FEATURES

  • X16 – 1 HUB,16 bi-directional detectors
  • X64 – 4 HUB, 16 bi-directional detectors
  • Improved supervision with continuous poling between the HUB and detectors
  • RF jamming supervision
  • Ensures signal acknowledgment
  • Intelligent bi-directonal remotes with system status
  • Home automation control
  • All programming is done via the X-Series keypad or IDSwift2
  • Wireless with the reliability of wired
CLOSE

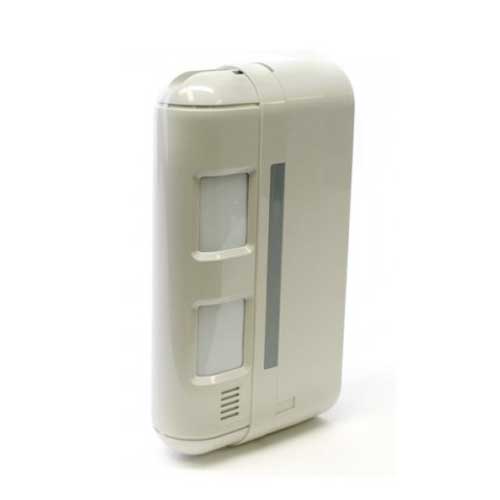

OPTEX Xwave BX80 Wireless Detectors (862-01-BX-80)

Description

Robust coverage of entrances on the side of a building

  • Outdoor Long range PIR – 12m detection areas on both sides of wireless detector
  • Variable detection range from 2 – 12m on each side
  • Double conductive shielding
  • Advanced PIR technology creates a narrow, long detection area that protects wide horizontal areas
  • Limited Detection Range Function – can be adjusted to avoid detecting unwanted objects
  • Layered Detection Pattern that discriminates between large & small objects in the detection area

AVAILABLE MODELS:

  • 862-01-BX-80NC
  • 862-01-BX-80N-LC (low current – requires TX)
LEAFLET
CLOSE

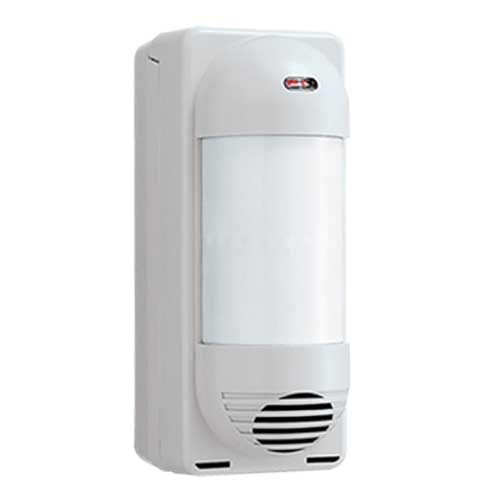

OPTEX VXI Wired Detectors (862-01-VXI)

Description

Flexible enough to cater for most outdoor applications

  • Outdoor 12 x 12m wireless detector
  • 1m low mount outdoor detector
  • 5 Levels of Detection Length Adjustment
  • 7 Horizontal Area Adjustments
  • SMDA Logic for environmental noise immunity, with efficient energy management
  • Double conductive shielding
  • Advanced Temperature Compensation Logic

AVAILABLE MODELS:

  • 862-01-VXI-ST
  • 862-01-VXI-AM (with anti-masking)
  • 862-01-VXI-DAM-X5 (dualtech with anti-masking)
LEAFLET
CLOSE

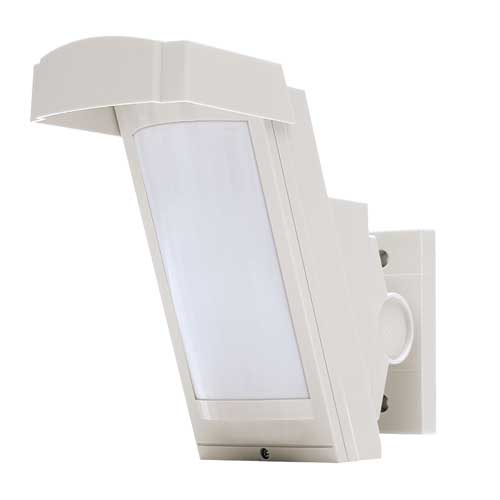

OPTEX Xwave2 Bi-directional HX40 Wireless Detectors (862-22-HX-40RAMC)

Description

Advanced customisable detection for complex or high-security outdoor applications

  • Outdoor 12 x 12m wireless detector
  • 3m high mount outdoor detector
  • Multiple pattern detection area technology
  • Pyro-element intelligent AND logic prevents false alarms caused by small animals
  • IP55 and UV resistant ASA body
  • Vegetation sway analysis logic
  • Dual signal processing circuit automatically adjusts its detection sensitivity preventing missed alarms in a hostile environment

AVAILABLE MODELS:

Xwave2 Bi-directional Wireless:

  • 862-22-HX-40RAM, 12x12m (with anti-masking)

Xwave Wireless:

  • 862-01-HX-40RAM, 12x12m (with anti-masking)
  • 862-01-HX-40RAM-LC (low current – requires TX)
LEAFLET
CLOSE

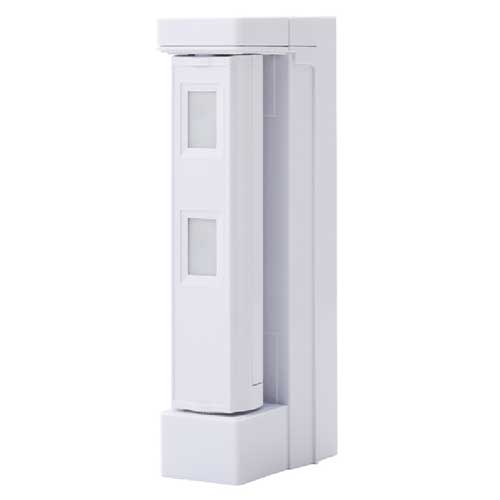

OPTEX FTN Wired Detectors (862-01-FTN)

Description

Protect building entry points with this flexible short range passive detector

  • Outdoor 5 x 2m switchable lens wireless detector
  • Built in bracket (190° horizontal)
  • Dual element Pet PIR
  • IP55 and UV resistant ASA body
  • Operating Temperature: -20°C to +60°C
  • SMDA Logic
  • Intelligent and Detection Logic
  • Pet Tolerance
  • Active IR digital anti-masking

AVAILABLE MODELS:

  • 862-01-FTN-ST, 5x1m
  • 862-01-FTN-AM, 5x1m (with anti-masking)
LEAFLET
CLOSE

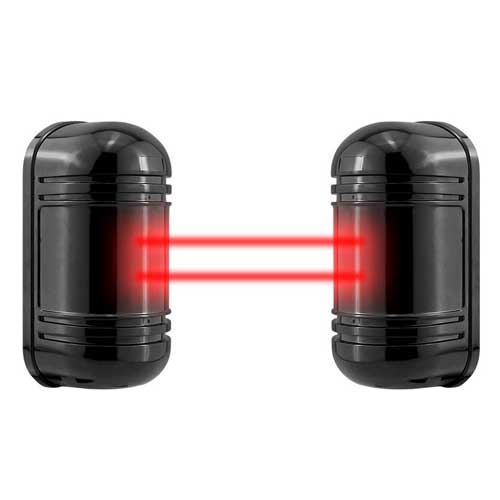

IDS Dual Active Infra-Red Outdoor Beam (862-06-IDS30)

Description

  • 2 simultaneous cut off detection beams
  • Adjustable response time of 50-700msec
  • Excellent immunity to fog & mist
  • Sensitivity monitoring output terminal
  • Optical axis horizontal adjustment of 90°
  • Optical axis vertical Adjustment of 10°
  • 3 year warranty
CLOSE

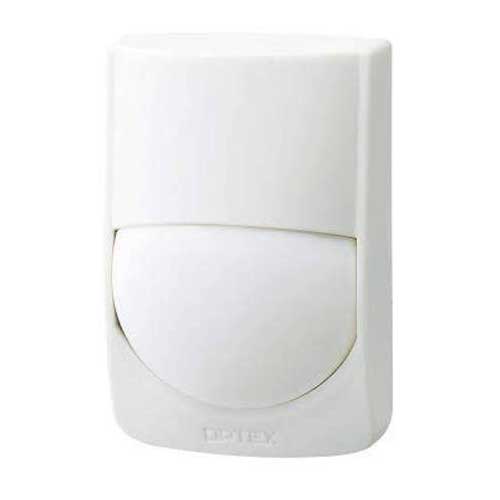

OPTEX RX Wired Compact Indoor Detectors (862-01-RXC)

Description

High perfomance with small animal immunity

  • Quad zone logic with digital target recognition for small animal tolerance
  • Improved RF and white light immunity
  • Advanced temperature compensation logic
CLOSE

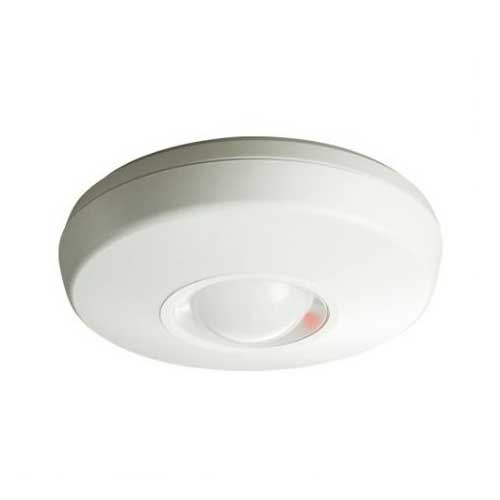

OPTEX Indoor 360° Detector (862-01-FX)

Description

Optimal coverage of large open areas, particularly in commercial or industrial applications.

  • 8m to 12m 360°, ceiling mount PIR
  • Spherical Lens Design
  • Temperature compensation
  • Noise reduction circuit
  • Selectable Pulse Count: 2 or 4
CLOSE

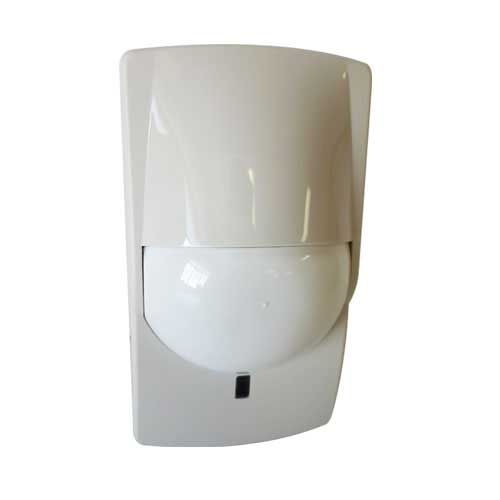

OPTEX Xwave2 Bi-directional WNX Wireless PIR (862-22-WNX-40PI-T)

Description

Pleasing aesthetics and solid detection performance suitable for standard indoor domestic and commercial installations, including those with small pets.

  • 12 x 12m range
  • Small pet immunity wireless detector
  • Quad Zone Logic – Improved
  • Patented Technology
  • Spherical Lens – Technology to back up Quad Zone Logic
  • RFI Protection: 20V/m
  • Selectable Pulse Count: 2 or 4

Available Models:

Xwave2 Bi-directional Wireless:

  • 862-01-WNX-40PI-T (12x12m)
CLOSE

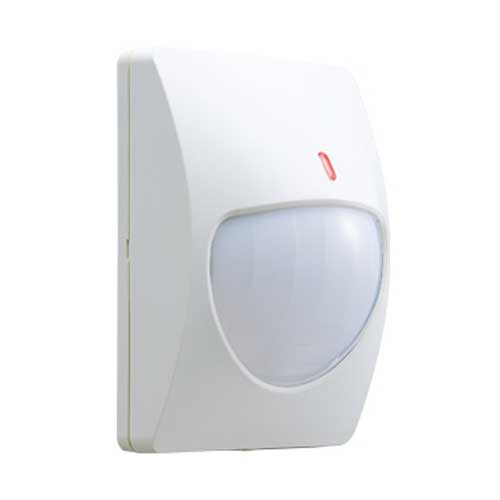

OPTEX Xwave2 Bi-directional CX Wireless Long Range PIR (862-22-CX-702RSC)

Industrial or commercial applications where detection range trumps aesthetics. Warehouses / factories.

  • 45 x 2.4m or 21 x 21m range
  • Multi-focus technology
  • Double conductive shielding
  • 3-step Lens angle adjustment

Available Models:

Xwave2 Bi-directional Wireless:

  • 862-22-702RSC (45×2.4m or 21x21m)

Xwave Wireless:

  • 862-01-702RSC (45×2.4m or 21x21m)
CLOSE

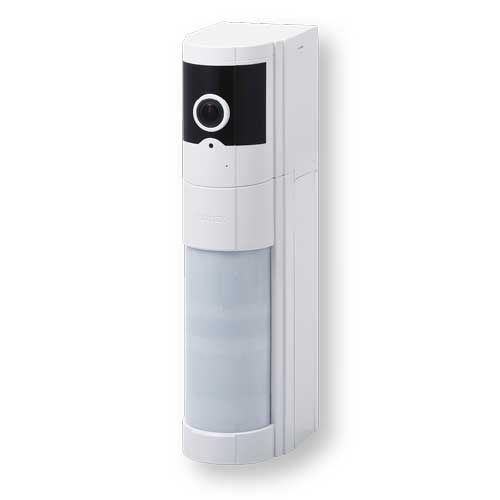

OPTEX VXI CMOD Camera module and VX Infinity sensor (862-01-VXI-CMOD)

Description

Optex VXI CMOD camera module and VX Infinity sensor

  • Wifi 1080P HD video camera with night vision
  • 180 degree view angle
  • Pre and post alarm recording
  • Microphone is integrated
DATA SHEET
CLOSE

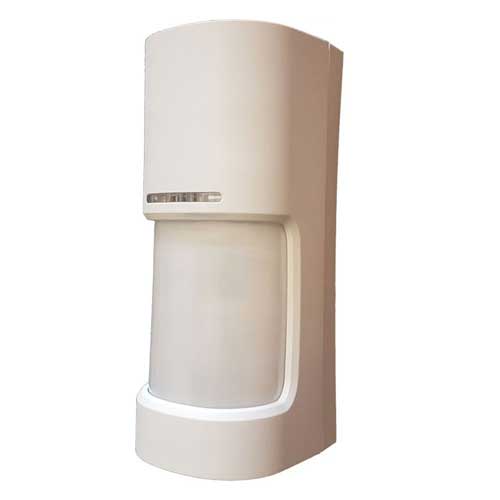

OPTEX WXI-AM Wired Detector with Anti-Masking (862-01-WXI-AM)

Description

Flexible enough to cater for most outdoor applications

  • Worlds #1 Detector manufacturer
  • Single or dual zone output – can be 1 or 2 zones on the panel
  • Flexible – Each side sensitivity and range can be adjusted individually
  • Digital SMDA logic – incredibly accurate & reliable
  • Double conductive shielding – excellent immunity to white light
  • Secure – Front cover tamper and back tamper
  • Quick installation & set up
LEAFLET
CLOSE

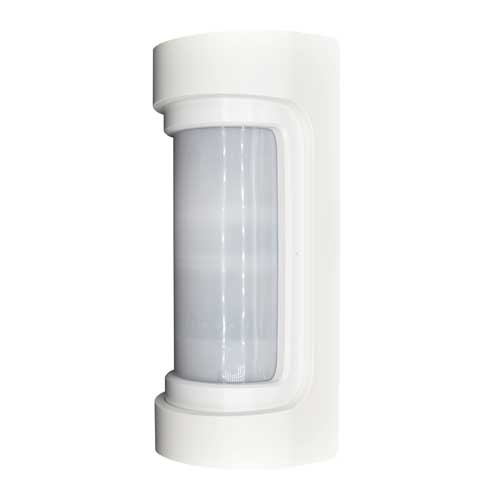

OPTEX VXS Wired Detector (862-01-VXS)

Description

Optex VX Shield is a series of three outdoor sensors providing a 12 meter by 90 degree detection cover

  • Outdoor low mount 12x12m wired detector
  • Digital dual and triple layer detection
  • Flexible range adjustment
  • Active anti-masking
  • Double conductive shielding
  • SMDA logic with anti sway
  • Easy setup and installation
  • Secure Housing
  • With microwave
DATA SHEET
OPTEX Information
CLOSE

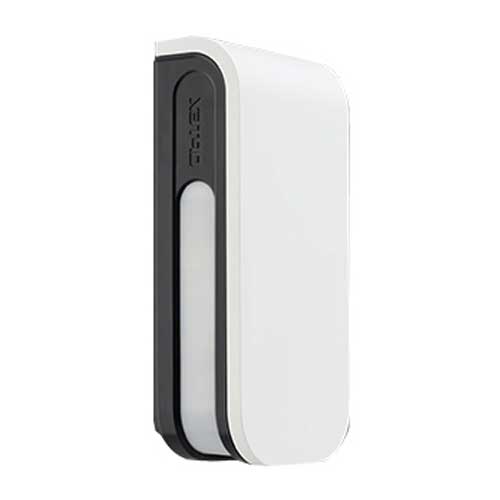

Optex Shield BXS wired outdoor dual long range PIR (862-01-BXS-ST)

Description

 For buildings, perimeter and approach

  • Outdoor 24m long range PIR – 12m detection areas on both side
  • Digital dual layer detection
  • Flexible range adjustment
  • Active anti-masking option
  • Double conductive shielding
  • SMDA logic with anti sway
  • Left and right detection
  • Easy setup and installation
  • Extreme high detection mode
  • Secure housing
DATA SHEET
OPTEX Information
CLOSE

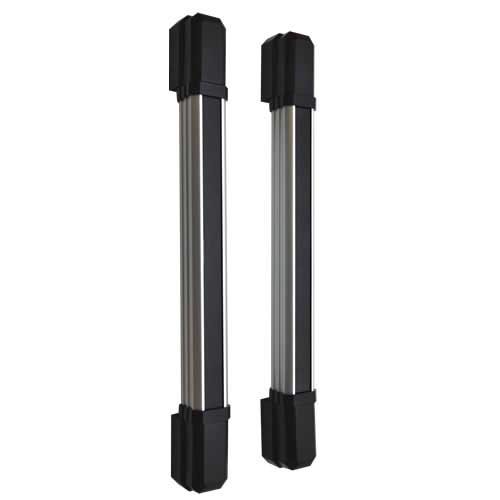

Strip Beams

Description

  • Photoelectric Strip Beam requiring both beams interrupted simultaneously to generate an alarm
  • Configuration: 2 – 8 Beams, different lengths
  • Profile: aluminium
  • Flexible installation – does not require a common power supply between the receiver and transmitter
  • No Sync wire for distances greater than 5 metre
  • Operating voltage: 13.8 VDC
  • Built in buzzer and LED for quick alignment
  • 180° Alignment axis
  • NC Alarm relay output
  • IP55 Rated
CLOSE

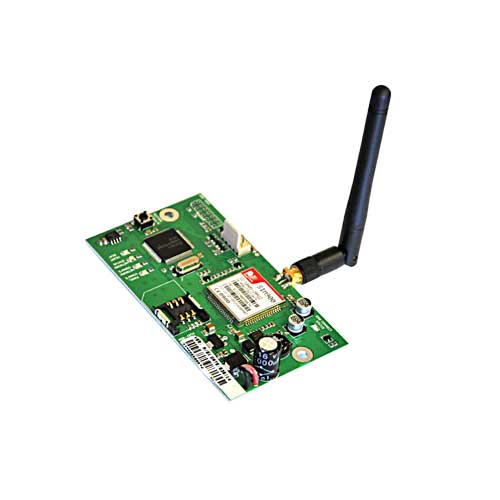

IDS XSms Module

Description

Developed by IDS

  • Controls the X-Series via sms
  • Simple sms commands with replies
  • Arm/Disarm or Partition control
  • Bypass and un-bypass zones
  • Customize labels
CLOSE

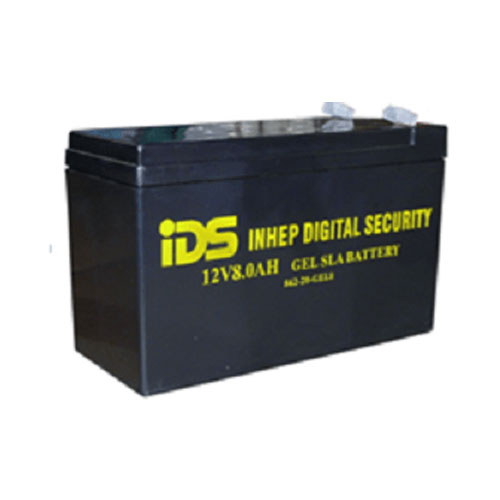

IDS 12V 8AH Battery

Description

  • 12 Volts DC, 7 Amp/h battery designed for alarm systems
  • Quality sealed lead acid batteries GEL – (Gelled Electrolyte Lead)
  • Maintenance free
  • 1 Year warranty
