PANIC SYSTEMS

MIMIC BASE 4000

GSM MODULE FOR MB4000

FIXED PANIC PANEL

ZGS Security Services is operating essential sevices during the South African lock-down period. For more information and a daily update on the COVID-19 pandemic in South Africa click button:

COVID-19 South Africa
Graphic and Website Design Pretoria South Africa
Copyright © 2020 ZGS Security Services PTY LTD
CLOSE

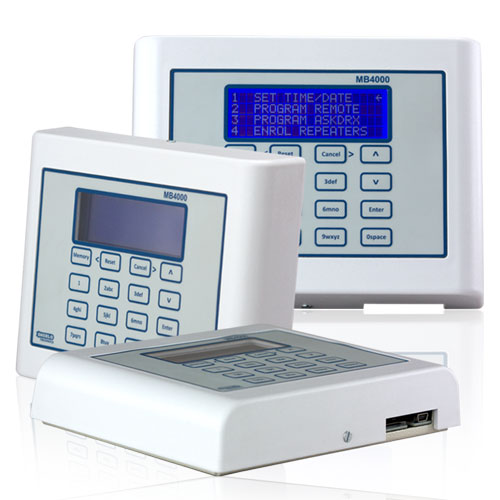

MIMIC BASE 4000

Description

Wireless Panic Mimic Base MB4000

The complete Wireless 24Hour Panic System solution for Shopping malls, Retirement Villages & more



APPLICATIONS

  • Shopping Centre Panic System
  • Frail Care Nurse-call System
  • Retirement Village Alarm Monitoring
  • Housing Estate Alarm Monitoring
  • Office Park Alarm Monitoring
  • Resort Alarm Monitoring

FEATURES

  • Memory Capacity of 2000 Remotes
  • Learn Remotes via a SMS message
  • microSD card for backing up
  • USB 2.0
  • 40 Character custom text programmable
  • SMS Input & Output commands for
  • programming remotes via an SMS
  • Internal Buzzer notification
  • RS 485 Data receiver BUS
  • Monitoring Software GUI with Reporting,
  • User codes & full event logging of all actions
  • Keeps time & date for several days if de-powered
LEAFLET
CLOSE

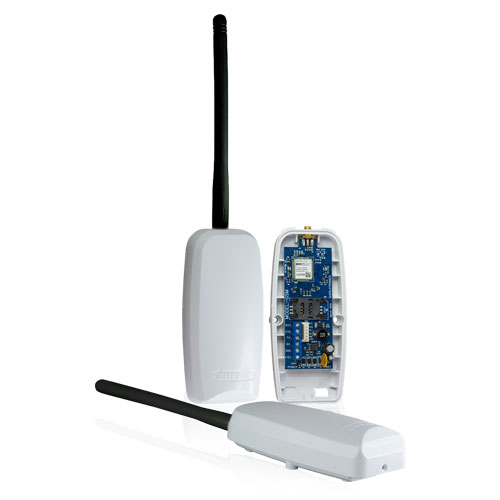

GSM MODULE FOR MB4000

Description

APPLICATIONS

  • The GSM module is designed to be used exclusively with the MB4000 Wireless Mimic base unit.
  • The GSM unit dials out pre defined SMS messages programmed in the MB4000 unit. Messages can be up to 40 Characters long and are normally the address of each Panic Remote which is pre-programmed into the MB4000.
  • The MB4000 can be programmed to message two unique cellular numbers per remote zone and up to 32 Master numbers can be programmed in.
  • The unit requires a standard SIM card without the Pin number enabled.

FEATURES

  • Quad-Band 805/900/1800/1900MHz
  • GPRS multi-slot class 10/8
  • Compliant to GSM phase 2/2+
    – Class 4 (2W @ 850/900MHz)
    – Class 1 (1W @ 1800/1900MHz)
  • GPRS mobile station class B
  • Control Via AT Commands
  • Low power consumption
CLOSE

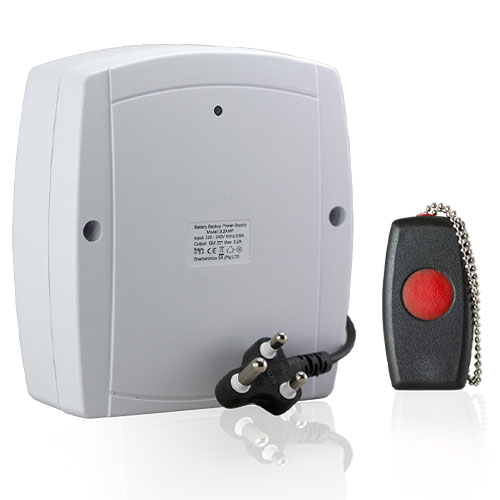

FIXED PANIC PANEL

Description

APPLICATIONS

  • Office panic
  • Shop panic
  • Home panic
  • Factory panic
  • Guard house panic

Designed to be wired to a static hardwired panic button as well as work with Remote panic buttons. When a Panic is activated the unit will trigger the 3 Minute siren output as well as the Radio output & a Latching Strobe output. All activations can be reset via either the Remote control or the Hardwired Panic button. Our Low battery cut-out @ 10V DC will safeguard the battery from deep discharge.

FEATURES

  • Microprocessor Controlled charging output.
  • Low battery switch off at 10V DC.
  • Buzzer tones on battery low and AC Fail.
  • Resettable Fuse protection on output.
  • Fuse protection on AC input.
  • ABS Plastic enclosure.
LEAFLET
