Compact, Waterproof Digital Business Radio
IDAS™ Digital Mode Operation
The IC-F1000D/F2000D can program Type-D single- site trunking and digital conventional modes as well as analog mode per channel. The IDAS digital mode employs 4-level FSK modulation and the NXDN™ common air interface, offering true 6.25kHz spectrum efficiency, higher security and better audio clarity – even at the fringes of the communication range.
The following IDAS features are programmable:
Built-in Versatile Tone Signaling
Use the built-in CTCSS, DTCS, 2-Tone 5-Tone or BIIS 1200 capability to set up your own talk groups, and have your radio standby quietly when other groups are talking. Up to 10 2-Tone, 8 5-Tone codes can be decoded on a single memory channel.

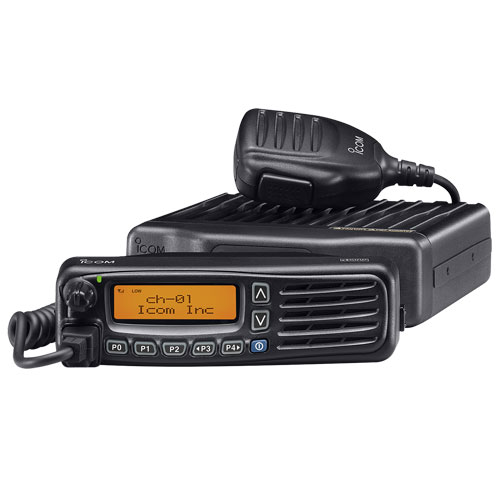

Dot-Matrix, Multi-Function LCD
The IC-F5062D series has a large dot-matrix display to show information with high visibility characters. 4 watts (typ.) front mounted speaker delivers clear and loud audio.
IP54 Dust-Protection and Splash Resistance (Controller only)
When used with the optional separation kit, RMK-3, and separation cable, the front panel of the IC-F5062D series can be detached from the main unit. The control head has dust-protection and splash resistance construction equivalent to IP54.
IDAS Digital Mode Ready
IDAS (Icom Digital Advanced System) is Icom’s digital land mobile system using the 6.25kHz narrowband FDMA technology. IDAS has choice of an NXDN™ protocol or an ETSI dPMR™ protocol.
Mode Dependent Scan
In the normal mode scan, you can select a scanning list independent to the channel setting. In the mode dependent setting, the scanning list is automatically selected according to the operating channel. It is convenient when you change operating channels or move to a different operating area, you don’t need to change the scanning setting.
Optional Active Noise Canceling Microphone
The optional active noise canceling microphone HM-211 can automatically reduce noise in extremely noisy environments and assist in transmitting clear and accurate audio.
IDAS™ Multi-site Trunking Radio with Superior Waterproof
Protection
IDAS™ Digital Mode Operation
Go a step-above with the mid-level F3230D portable radio. The F3230D is designed to be clear and effective for any task at hand. The 1000 mW speakers make it easy to hear in noisy areas, the roaming scan function automatically finds the best connection and the 8-character LCD screen can provide useful information.
Channels: 128
Output Power: 5W VHF/4W UHF
Frequencies: 136-174/350-400, 400-470, 450-512
Digital Conventional: IDAS built-in
Digital Trunking: Built-in Type D single-site and multi-site
Waterproof Rating: IP67
Everything you’d expect in a business radio … Plus Digital!
IDAS™ conventional and IDAS™ single-site trunking compatible (NXDN™ CAI based)
Digital functionality built-in. No option unit required
Max. 128 channel memory channels with 8 zones
8 character alphanumeric display
Multiple analogue signalling modes built-in
2-Tone^, 5-Tone^, CTCSS^, DTCS^, MDC 1200*^ and BIIS 1200*^ (* Limited functions only, ^ Analogue mode only)
4W (typ.) front mounted speaker and independent volume knob
Talk back function and call mode selection
Optional OPC-2078 D-SUB 25-pin ACC cable for GPS receiver connection
MIL-STD-810-F rugged body
